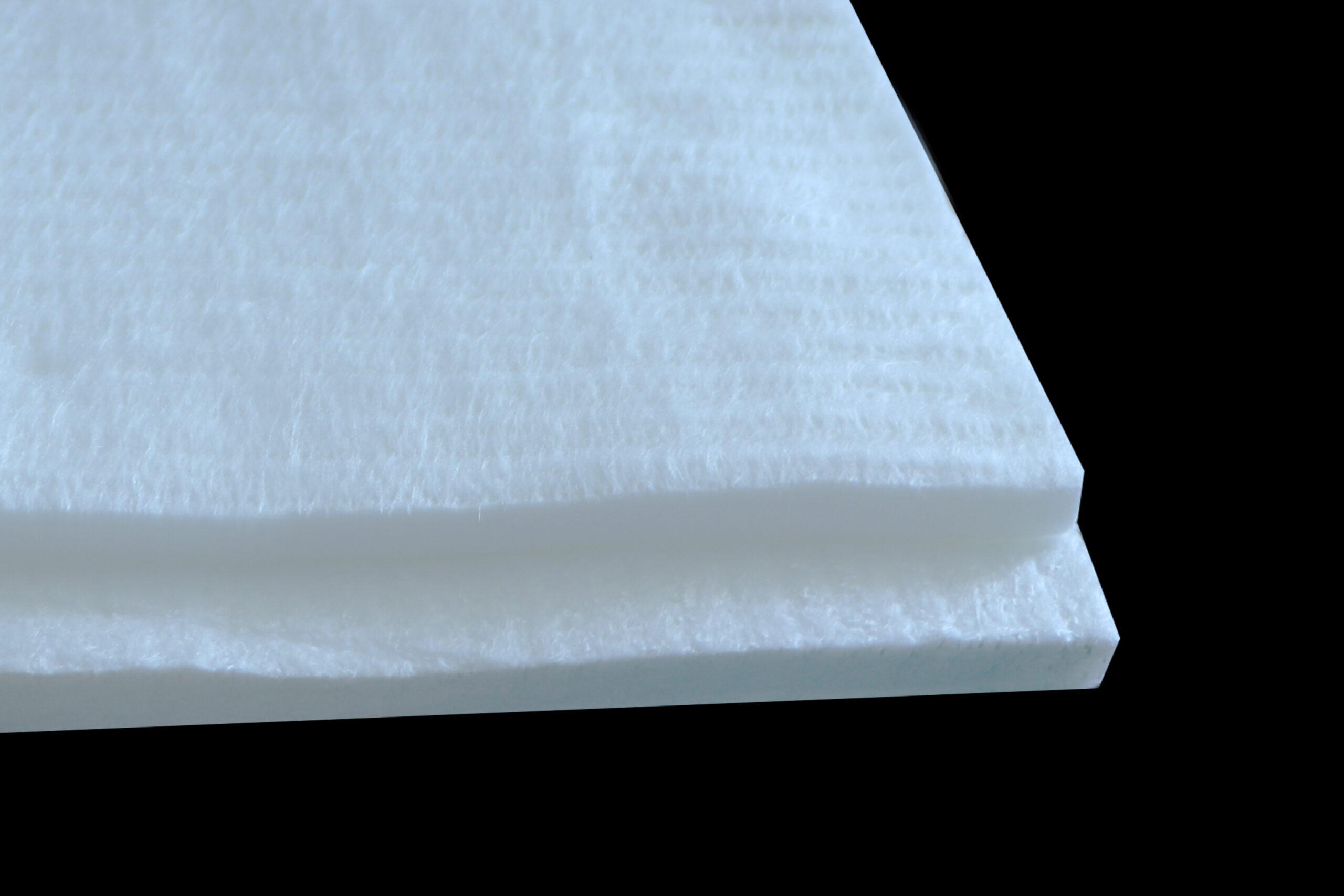

氧化铝纤维针刺毯是以“溶胶-凝胶”法制备的氧化铝纤维为原料,经复杂的针刺工艺制备而成。
氧化铝纤维由AI₂O3与SiO2组成,纤维内部结构致密,晶型稳定,经针刺工艺后,大大提高了纤维间的交织程度,具有良好的抗分层能力、抗拉强度及表面平整度,在高温工况下拥有更优异的隔热保温性能,可在较极端的环境下长期使用。我司氧化铝纤维针刺毯产品型号为72型。
产品性能参数表Table of product performance parameters
| 性能 Performance | 测试方法 Test method | 72型 |
| 化学结构Al2O3:SiO2(%)Chemical structure | 化学分析 | 72:28 |
| 矿物结构Mineral structure | XRD | δ-Al2O3 / γ-Al2O3/Mullite |
| 分类温度(℃)Classification temperature | GB/T 3003-2017 | 1600 |
| 渣球含量(≥45μm)(%)Shot content | GB/T 5480-2017 | 0-2 |
| 烧失率(%)LOI | GB/T 32179-2015 | 0.1 |
| 比重(g/cm³)Specific gravity | GB/T 5071-2013 | 3.1 |
| 平均纤维直径(μm)Average fiber diameter | GB/T 5480-2017 | 5.6-7.5 |
| 比热容(J/kg/K)Specific heat capacity | GB/T 19466.4-2016 | 1.17×10³~1.21×10³ | |||
| 线性收缩率(%)
Heat shrinkage |
1400℃×24h | GB/T 17911 | ≤1 | ||
| 1600℃×24h | ≤1 | ||||
| 导热性(W/m·k)
Thermal conductivity |
600℃ | GB/T 17911 | B. D.=100
kg/m³ 0.067 0.129 0.170 |
B. D.=130
kg/m³ 0.078 0.148 0.213 |
B. D.=150
kg/m³ 0.091 0.172 0.266 |
常规尺寸:宽度610mm,厚度7.5-25mm,体积密度100kg/m³、130kg/m³、150kg/m³。
除常规卷长外,长度可根据客户需求特殊定制。
